    125 kVA Elmot DG Sets

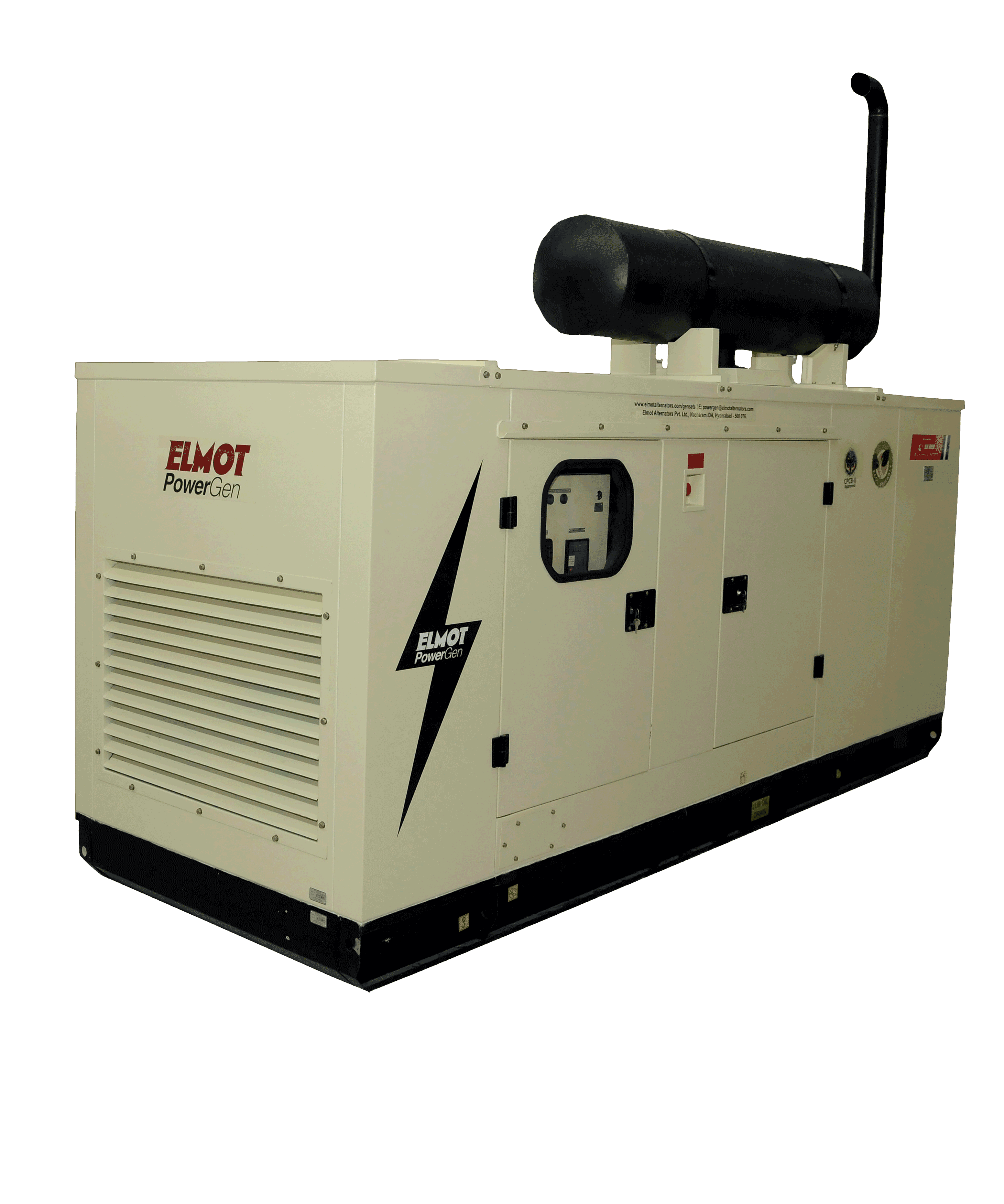

    125 kVA silent DG set

    125 kVA DG SET

    Model No. - ELM-125 ('ELMOT PowerGen' diesel generator set powered by EICHER - VECV LTD. engines)

    Call No:040-27179519

    Power Inside and Out

    Engine

    • Advanced technology and best metallurgy
    • Most fuel efficient engine in its class
    • Longer duration oil change period
    • Lubrication oil cooler and bypass filter in-built
    • Lower maintenance cost
    • Piston cooling nozzle
    • Extremely LOW vibration
    • In line fuel pump
    • Starter motor with thermal cut-off
    • Easy Serviceability and spares availability
    • No running-in period: First Change is after 500 hours / 6 months

    Alternators

    • Highest efficiency in its class
    • Higher overload sustainability
    • Highest output to weight ratio
    • Voltage Regulation: ±1% (standard), ±0.5% (optional)
    • Faster recovery response

    Acoustic Enclosures

    • Aesthetically designed
    • Convenient lifting arrangement
    • Suitable for outdoor and harsh weather condition installations
    • Easy access to accessories with secure serviceability
    • Integral Control Panel
    • Integral fuel tank with 3-way fuel indication
    • Powder coated with nine tank pre-treatment for durability
    • Silencer with bird protection cover and tail pipe

    125 kVA DG SET

    General Specifications

    DG Set model NO ELM-125
    Rating 125kVA
    Rating Type (as per ISO 8528) Prime
    Power Factor (PF) 0.8 (lag)
    Engine Model EE694-TCI
    Engine Rated Power (BHP) 156
    Cylinders 6
    Aspriration TCI
    Displacement (Litres) 5.70
    Compression Ratio 17.5:01
    Bore and stroke (mm) 100 x 120
    Method of starting - Electrical 12V DC
    Minimum capacity of Amp.hr starting BATTERY 120
    Lube Oil Consumption (% of fuel Consumption) 0.1
    Lube Oil Sump capacity (Litres) 21.8
    Coolant Capacity - UOM as Litres 23
    Service Interval (Hours/Months) 700/12
    Governing class Mechnical A2
    Alternator Make Mecc Alte/Leroy Somer/Stamford
    Alternator type Brushless, single bearing, self-excited with solid state AVR
    Phases 3-phase
    Frequency (Hz) 50
    Insulation Class F/H
    Control panel (Mode) Manual (AMF Module is standard)
    Genset dimensions (LXBXH) 3400x1250x1500
    Fuel Tank Capacity (Litres) 200
    Genset Weight (kg) 2200

    Notes:

    1. Conditions Apply
    2. Electronic governor is optional
    3. Other makes of alternator can be provided on request
    4. Indicative. Please refer to engineering drawings for exact details
    5. 140 kVA/112 eKW rating is available on request
    6. Power ratings are as per standard reference conditions, in accordance with BS 5514/ISO 3046/ISO8528 and IS 10002/IS 3046

    Options & Services:

    • Transportation and transit insurance
    • Unloading and shifting of Genset at site
    • Civil foundation at site
    • Power and control cabling outside acoustic enclosure
    • Earthing of equipment (Genset and Panel) at site
    • Exhaust pipe extension
    • Any kind of special statutory approval

    Standard Scope Of Supply:
    Lighting inside acoustic enclosure Included
    Fuel tank & fuel piping Inbuilt (with lock and key arrangement)
    First fill of lube Oil & coolant Included
    Power Cable Included within acoustic enclosure (between alternator & Genset panel)
    Silencer with tail pipe Included
    Fuel level gauge & sensor Included
    Emergency Stop button (E-STOP) Included
